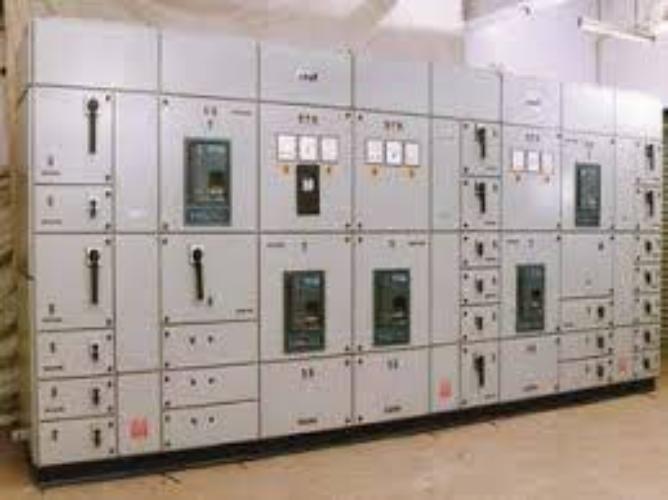

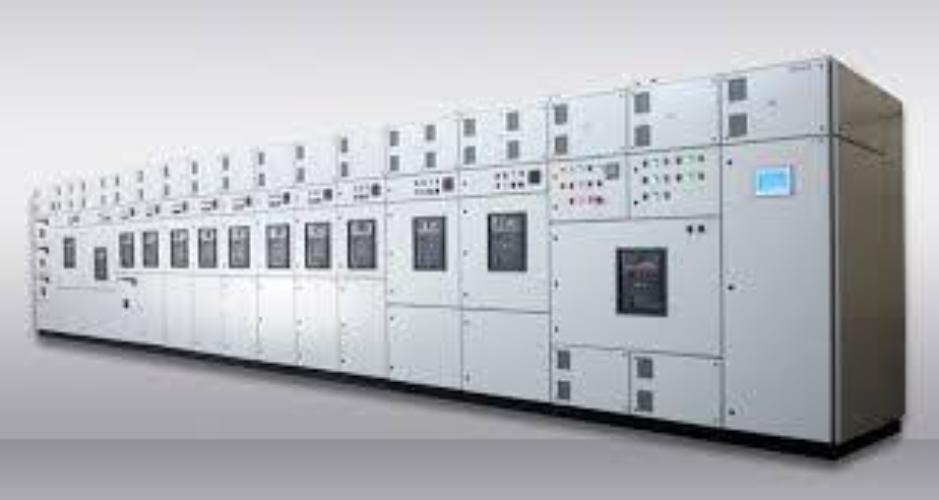

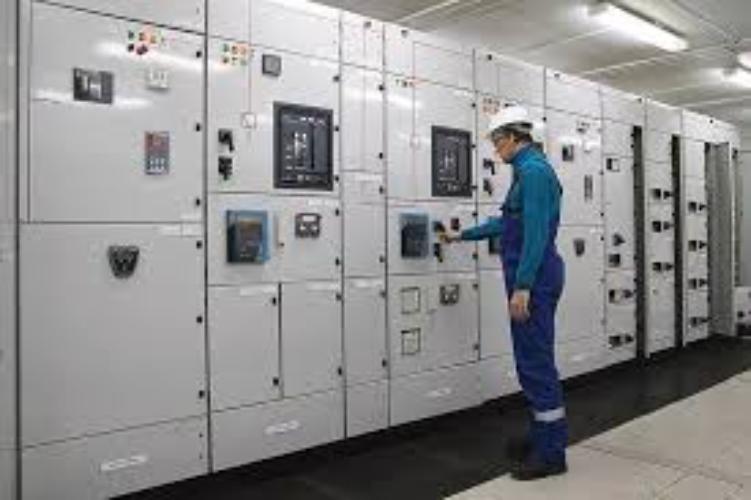

High Tension panel

About High Tension panel

Product Description:

High Tension (HT) Panels are medium- to high-voltage electrical switchgear assemblies designed to control, protect, and isolate electrical equipment in power distribution systems. They receive power from transformers or generating stations and distribute it safely to various loads.

Manufactured with robust design and advanced safety features, our HT panels ensure reliable performance, minimal downtime, and compliance with industry standards. They are available in indoor and outdoor configurations and can be customized as per specific site and operational requirements.

Key Features:

• Voltage Rating: 3.3kV / 6.6kV / 11kV / 22kV / 33kV

• Current Rating: 630A to 4000A

• Type: Indoor Metal Clad, Outdoor Kiosk Type, Fixed or Draw-out

• Switchgear Options: VCB (Vacuum Circuit Breaker), SF6, Load Break Switch

• Protection: Overcurrent, Earth Fault, Under/Over Voltage, Relay Protection

• Busbar System: High conductivity copper/aluminium, insulated & shrouded

• Compliance: IS/IEC standards (IEC 62271, IS 3427)

• Control: Manual or motor-operated with interlocking for safety

Applications:

• Power Generation Plants

• Electrical Substations

• Industrial Factories & Process Plants

• Infrastructure Projects

• Commercial Complexes & High-rise Buildings

• Utility Distribution Networks

Frequently Asked Questions (FAQs)

Q1. What is an HT Panel?
An HT Panel is a high-voltage electrical switchgear system used to manage, control, and protect power distribution at voltage levels above 1kV, typically between 3.3kV and 33kV.

Q2. What types of breakers are used in HT panels?
HT panels generally use VCB (Vacuum Circuit Breakers), SF6 Circuit Breakers, or Load Break Switches depending on application and site conditions.

Q3. Can HT Panels be customized?
Yes. We design panels as per your load requirements, protection schemes, layout, and space availability, including indoor metal-clad or outdoor weatherproof designs.

Q4. What is the difference between HT and LT Panels?
HT panels operate at higher voltages (3.3kV33kV), while LT panels operate below 1kV. HT panels handle incoming power from transformers/generators; LT panels distribute power to end loads.

Q5. What safety features are included?
Interlocking systems, earthing mechanisms, arc protection, and insulated busbars are provided to ensure operator safety and system reliability.

Q6. Do you provide installation and maintenance services?
Yes. We offer complete design, manufacturing, installation, testing, commissioning, and AMC services for HT panels.
